Low-level functions for BLK file format, for high level API use the vromf module

§Binary BLK

This module describes the binary BLK format and all of its know features and flags.

⚠ Warning: Unless stated otherwise, all integers are Little-endian

§Terminology

For ease of writing and reading, there are a few terms i will establish for this chapter

u32 -> 32-bit unsigned integer
u64 -> 64-bit unsigned integer
f32 -> 32 bit float
f64 -> 64 bit float
[T; N] -> N long array of T
offset -> absolute offset from 0 in the file
nm -> A file containing Strings that is not in the BLK binary itself
dict -> A ZSTD dictionary used in batch compressing many BLK files
ULEB -> Unsigned LEB encoded variable length integer format: https://en.wikipedia.org/wiki/LEB128
Name/Name map -> String as key or value in the BLK, map is an array of Strings

§Types

BLK has 12 data-types

Name	Byte identifier	Layout	Size in bytes	Inline
String	0x01	Zero terminated string	Variable
Int	0x02	i32	4	yes
Float	0x03	f32	4	yes
Float2	0x04	[f32; 2]	8
Float3	0x05	[f32; 3]	12
Float4	0x06	[f32; 4]	16
Int2	0x07	[i32; 2]	8
Int3	0x08	[i32; 3]	12
Bool	0x09	boolean	4	yes
Color	0x0a	[u8; 4]	4	yes
Float12	0x0b	[f32; 12]	48
Long	0x0c	i64	8

§Inlining

When a type is inline, it means that its offset field contains the types data (used for small types 32 bits or smaller). Otherwise, the type data is an offset where the actual payload can be found.

§Kinds of BLK files

There is not just one type of BLK, there are some important differences to denote.

Byte ID	String ID	Description
0x00	BBF	A legacy format that this library does not understand
0x01	FAT	A standalone BLK binary, about as normal as it gets
0x02	FAT_ZST	Same as FAT, but ZSTD compressed
0x03	SLIM	A BLK like FAT, but with all strings outlined to the nm
0x04	SLIM_ZST	Same as SLIM, but ZSTD compressed
0x05	SLIM_ZSTD_DICT	Same as SLIM, but ZSTD compressed using the dict

§Name reference

Whenever a String is used in the name-map or field-map, this layout applies. If the tag-bit is set, it means the index has to be looked up from the external nm, otherwise the regular nm,

Tag	Index
1 bit	31 bit unsigned integer

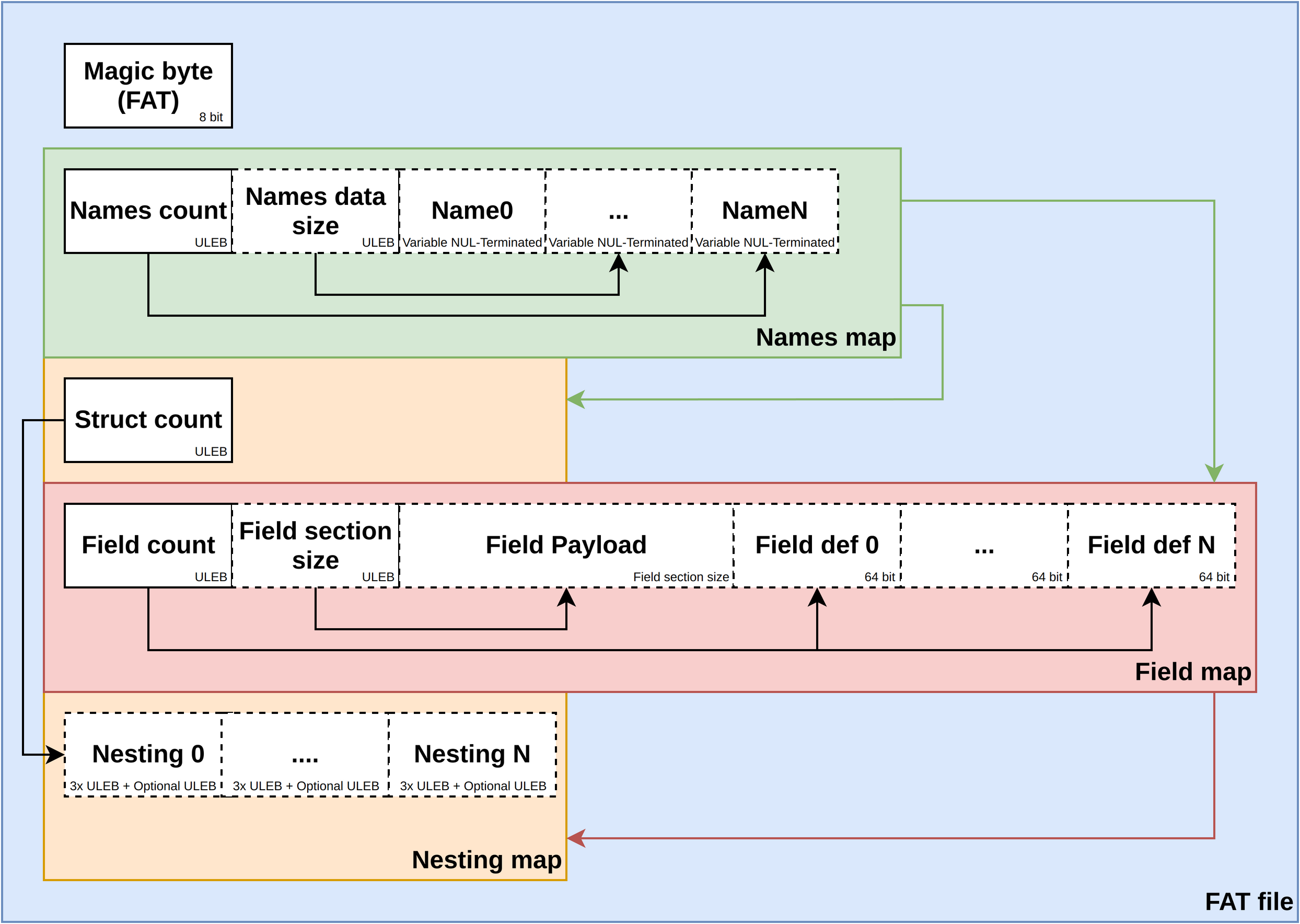

§File layout

Now that we understand all necessary terms and types for BLK, were almost ready to encode/decode them. I will first explain the layout of a regular FAT file, then elaborate on the differences to the other kinds. The file starts off with a single byte describing its kind, FAT in this case, of course. After that, we begin the first section of data already called the [Name map].

§Name Map

Defines where any Strings used as keys or values in this BLK. In the case of SLIM, only the names count ULEB will be present, skipping straight to the struct count. In the case of FAT, following the names count (ULEB) N is the names buffer size (ULEB) S. After this comes all null seperated strings that should be as many as N specified.

§Block count

A single ULEB defining how many nested structs the BLK file contains (used later).

§Field map

Similar to the name map, here we first get the amount of fields followed by the size of the payload buffer. The field payloads come before the field definitions and therefore need to be used during the decoding of the fields. Each field definition is 32 bits in size structured as such:

Name ID	Type ID	Offset
u24	u8	u32

When the type is inline, simply interpret the offset as its payload. Otherwise, use the offset relative to the start of the payload buffer, reading as many bytes as the type needs.

§Nesting map

§Until now, we have only read and parsed a list of fields. But you may ask, doesn’t BLK support nested structs? Indeed, it does, and it uses the following layout to figure out which fields and struct correspond to which parent struct. The data layout is as such: |Index|Struct name|field count|sub-structs count|sub-struct index (optional)| |-|-|-|-| |ULEB|Name ID|ULEB|ULEB|

Explaining the algorithm necessary to structure this data is not trivial, so I will explain each value and its purpose with care. However, I believe that, reading crate::blk::blk_block_hierarchy::FlatBlock (implementation) together with this text will work better than just the text.

To start off, we first get the index, which uniquely identifies any struct, where 0 is the root/core struct. Together with the index, we can determine the name, which is a Name ID or undefined and irrelevant if the index is 0.

Field count defines how many fields from the field map belong to this struct in the order as they appear. Keeping track of the sum of previouscount’s is important as current count starts from where the last field ended.

Sub-structs count defines how many substructs there are.

Sub-structs index defines which other struct are contained in this one, using the same indexing system as field count. This value is not present when sub-structs count was 0.

This mechanism is best explained with an example to go with it: Lets use this BLK as our working minimal example:

"vec4f":p4 = 1.25, 2.5, 5, 10
"int":i = 42
"long":i64 = 0x40
"alpha" {
   	"str":t = "hello"
   	"bool":b = true
   	"color":c = 0x1, 0x2, 0x3, 0x4
   	"gamma" {
   		"vec2i":ip2 = 3, 4
   		"vec2f":p2 = 1.25, 2.5
   		"transform":m = [[1, 0, 0] [0, 1, 0] [0, 0, 1] [1.25, 2.5, 5]]
   	}
}
"beta" {
   	"float":r = 1.25
   	"vec2i":ip2 = 1, 2
   	"vec3f":p3 = 1.25, 2.5, 5
}

The Nesting map would look like the following:

Index	Name	Indexes	Sub-blocks	Binary representation
0	N.A.	0,1,2	1,2	`0x00 0x03 0x02 0x01`
1	alpha	3,4,5	3	`0x04 0x03 0x01 0x03`
2	beta	6,7,8		`0x0C 0x03 0x00`
3	gamma	9,10,11		`0x08 0x03 0x00`

Modules§

binary_deserialize: Implementation for deserializing internal representation to binary form
blk_block_hierarchy 🔒: Decodes flat map of fields into the corresponding nested datastructures
blk_string 🔒
blk_structure: Defines the recursive/nested structure that BLK files are represented with internally
blk_type: Defines the primitive types that BLK stores
error: Shared error that is returned from hot functions, otherwise, color_eyre::Report is used
file: One-byte file header that each blk file begins with
leb128: Utility function to decode ULEB128 encoded files https://en.wikipedia.org/wiki/LEB128
name_map: Struct storing a shared map of strings that multiple BLK files reference
plaintext_deserialize 🔒: Implementations for deserializing into internal representation format from text
plaintext_serialize: Implementations for serializing into human readable text formats from internal representation
util: Collection of macros and functions used in all BLK modules
zstd: Zstandard unpacking functionality

Structs§

DecoderDictionary: Prepared dictionary for decompression

Functions§

make_strict_test
test_parse_dir 🔒
unpack_blk: Highest-level function for unpacking one BLK explicitly, for direct low level control call binary_deserialize::parser::parse_blk
